Littelfuse offers an extensive portfolio of Automotive Sensors that includes a wide range
of automotive and commercial vehicle products designed to monitor the passenger compartment
occupants and environment as well as the vehicle’s powertrain, emissions, speed and suspension.
Litelfuse는 차량의 파워트레인, 배기 가스 배출, 속도 및 서스펜션뿐만 아니라 승객실 탑승자와
환경을 모니터링하도록 설계된 광범위한 자동차 및 상용 차량 제품 포트폴리오를 제공한다.
Littelfuse Powertrain sensors cover the entire range of vehicle needs providing
position, level, rotation and speed data from such components as the engine Camshaft, transmission & Fluid Levels.
Litelfuse 파워트레인 센서는 엔진 캠축, 변속기 및 오일 레벨과 같은 구성 요소로부터
위치, 레벨, 회전 및 속도 데이터를 제공해야 하는 차량의 전체 범위를 커버한다.

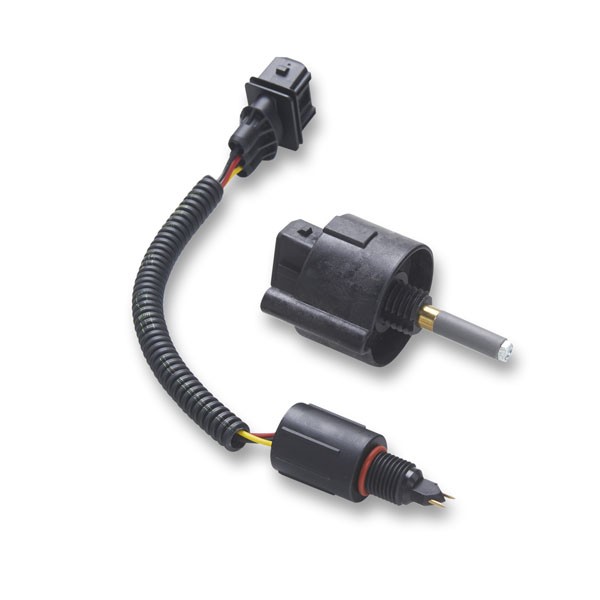

The purpose of the sensor is to detect the presence of water in diesel fuel.
The sensor is mounted inside of the fuel filter and has two main output signal stages, low level and high level, which identify the presence and absence of water.
The output signal level is changed when water reaches a defined water level in the fuel filter.
Features
■ Resistance measurement for fluid applications
■ Robust, simple, cost effective design
■ Works with different fluid parameters
■ Wide voltage supply range: 5 V to 36 V
■ DC or AC measurement method can be used
■ Integrated self test
■ Choice of connectors and terminals
Benefits
■ Suitable for low pressure and high pressure systems
■ Operating temperature range: -40°C to +135°C
Applications
■ Diesel filters
■ Fuel tank systems
특징들
■ 유체 도포에 대한 저항 측정
■ 견고하고 간편하며 비용 효율적인 설계
■ 다양한 유체 파라미터와 함께 작동
■ 광전압 공급 범위: 5V ~ 36V
■ DC 또는 AC 측정 방법을 사용할 수 있음
■ 통합 자가 테스트
■ 커넥터 및 단자 선택
혜택들
■ 저압 및 고압에 적합 시스템들
■ 작동 온도 범위: -40°C ~ +135°C
적용들
■ 디젤 필터
■ 연료 탱크 시스템
