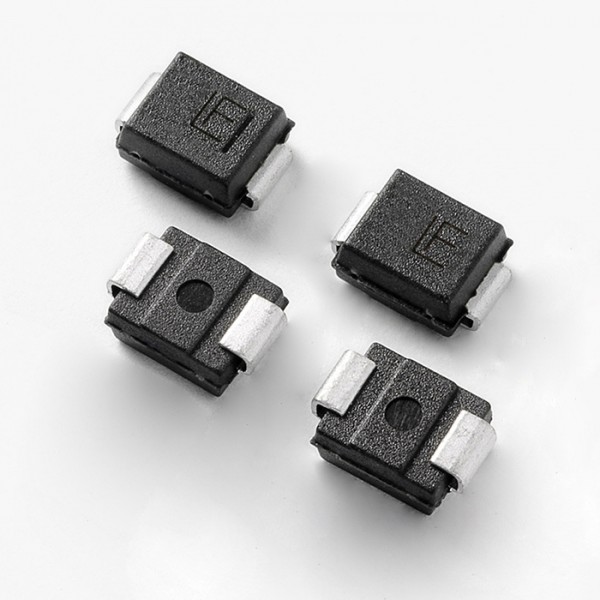

TPSMB-VR > TVS Diodes

IPP 10x1000μs (A): 91, 83.5, 71.7, 67.6, 60.3, 54.9, 49.7, 45.8, 40.5, 36.7

AEC-Q101 인증 TPSMC 시리즈는 번개 및 기타 일시적인 전압 이벤트로 인한

과도 전압으로부터 민감한 전자 장비를 보호하도록 특별히 설계되었습니다.

Hi reliability application and automotive grade AEC Q101 qualified

안녕 신뢰성 어플리케이션 및 자동차 등급 AEC Q101 인증

1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

10 / 1000μs 파형에서 1500W 피크 펄스 전력 성능, 반복률 (듀티 사이클) : 0.01 %

For surface mounted applications to optimize board space

보드 공간을 최적화하기 위해 표면 실장 어플리케이션 용

Low profile package.

로우 프로파일 패키지.

Typical failure mode is short from over-specified voltage or current

과도하게 규정 된 전압 또는 전류로 인해 일반적인 고장 모드가 짧음

Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

수염 테스트는 JEDEC JESD201A에 따라 테이블 4a 및 4c에 따라 수행됩니다

IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

IEC-61000-4-2 ESD 15kV (공기), 8kV (접촉)

ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

IEC 61000-4-2 (IEC801-2)에 따른 데이터 라인의 ESD 보호

EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

IEC 61000-4-4 (IEC801-4)에 따른 데이터 라인의 EFT 보호

Fast response time: typically less than 1.0ps from 0V to BV min

빠른 응답 시간 : 일반적으로 0V에서 BV min까지 1.0ps 미만

Excellent clamping capability

탁월한 클램핑 기능

Low incremental surge resistance

낮은 증분 서지 저항

Typical IR less than 1μA above 13V

13V 이상에서 1μA 미만의 일반 IR

High temperature soldering guaranteed: 160°C/10 seconds at terminals

고온 납땜 보장 : 터미널에서 160 ° C / 10 초

Plastic package has underwriters laboratory flammability 94V-O

플라스틱 포장에는 실험실 가연성 94V-O가 보험업자에 의하여있다

Meet MSL level1, per J-STD-020, LF maximum peak of 260°C

J-STD-020에 따른 MSL 레벨 1, 260 ° C의 LF 최대 피크 충족

Matte tin lead–free plated

무연 주석 도금 무연

Halogen free and RoHS compliant

할로겐 프리 및 RoHS 준수

TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom,

Computer, Industrial and Consumer electronic applications.

TVS 장치는 I / O 인터페이스, VCC 버스 및 통신, 컴퓨터, 산업 및 소비자 전자 애플리케이션에 사용되는

기타 취약한 회로를 보호하는 데 이상적입니다.

Catalog # VR (Vso) Watts (W) IPP 10x1000μs (A) MIN VBR@IT (V) MAX VBR@IT (V) Vc (V) IT (mA) Ir@Vso (μA) Max Temp (deg C) Stock Samples Compare TPSMB10A-VR 10 600 35.3 11.1 12.3 17 1 5 175 Check Order TPSMB10CA-VR 10 600 35.3 11.1 12.3 17 1 5 175 Check Order TPSMB11A-VR 11 600 33 12.2 13.5 18.2 1 1 175 Check Order TPSMB11CA-VR 11 600 33 12.2 13.5 18.2 1 1 175 Check Order TPSMB12A-VR 12 600 30.2 13.3 14.7 19.9 1 1 175 Check Order TPSMB12CA-VR 12 600 30.2 13.3 14.7 19.9 1 1 175 Check Order TPSMB13A-VR 13 600 28 14.4 15.9 21.5 1 1 175 Check Order TPSMB13CA-VR 13 600 28 14.4 15.9 21.5 1 1 175 Check Order TPSMB14A-VR 14 600 25.9 15.6 17.2 23.2 1 1 175 Check Order TPSMB14CA-VR 14 600 25.9 15.6 17.2 23.2 1 1 175 Check Order TPSMB150A-VR 150 600 2.5 167 185 243 1 1 150 Check Order TPSMB15A-VR 15 600 24.6 16.7 18.5 24.4 1 1 175 Check Order TPSMB15CA-VR 15 600 24.6 16.7 18.5 24.4 1 1 175 Check Order TPSMB16A-VR 16 600 23.1 17.8 19.7 26 1 1 175 Check Order TPSMB16CA-VR 16 600 23.1 17.8 19.7 26 1 1 175 Check Order TPSMB17A-VR 17 600 21.8 18.9 20.9 27.6 1 1 175 Check Order TPSMB17CA-VR 17 600 21.8 18.9 20.9 27.6 1 1 175 Check Order TPSMB18A-VR 18 600 20.6 20 22.1 29.2 1 1 175 Check Order TPSMB18CA-VR 18 600 20.6 20 22.1 29.2 1 1 175 Check Order TPSMB20A-VR 20 600 18.6 22.2 24.5 32.4 1 1 175 Check Order TPSMB20CA-VR 20 600 18.6 22.2 24.5 32.4 1 1 175 Check Order TPSMB22A-VR 22 600 16.9 24.4 26.9 35.5 1 1 175 Check Order TPSMB22CA-VR 22 600 16.9 24.4 26.9 35.5 1 1 175 Check Order TPSMB24A-VR 24 600 15.5 26.7 29.5 38.9 1 1 175 Check Order TPSMB24CA-VR 24 600 15.5 26.7 29.5 38.9 1 1 175 Check Order TPSMB26A-VR 26 600 14.3 28.9 31.9 42.1 1 1 175 Check Order TPSMB26CA-VR 26 600 14.3 28.9 31.9 42.1 1 1 175 Check Order TPSMB28A-VR 28 600 13.3 31.1 34.4 45.4 1 1 175 Check Order TPSMB28CA-VR 28 600 13.3 31.1 34.4 45.4 1 1 175 Check Order TPSMB30A-VR 30 600 12.4 33.3 36.8 48.4 1 1 175 Check Order TPSMB30CA-VR 30 600 12.4 33.3 36.8 48.4 1 1 175 Check Order TPSMB33A-VR 33 600 11.3 36.7 40.6 53.3 1 1 175 Check Order TPSMB33CA-VR 33 600 11.3 36.7 40.6 53.3 1 1 175 Check Order TPSMB36A-VR 36 600 10.4 40 44.2 58.1 1 1 175 Check Order TPSMB36CA-VR 36 600 10.4 40 44.2 58.1 1 1 175 Check Order TPSMB40A-VR 40 600 9.3 44.4 49.1 64.5 1 1 175 Check Order TPSMB40CA-VR 40 600 9.3 44.4 49.1 64.5 1 1 175 Check Order TPSMB43A-VR 43 600 8.7 47.8 52.8 69.4 1 1 175 Check Order TPSMB43CA-VR 43 600 8.7 47.8 52.8 69.4 1 1 175 Check Order TPSMB45A-VR 45 600 8.3 50 55.3 72.7 1 1 175 Check Order TPSMB45CA-VR 45 600 8.3 50 55.3 72.7 1 1 175 Check Order TPSMB48A-VR 48 600 7.8 53.3 58.9 77.4 1 1 175 Check Order TPSMB48CA-VR 48 600 7.8 53.3 58.9 77.4 1 1 175 Check Order TPSMB51A-VR 51 600 7.3 56.7 62.7 82.4 1 1 175 Check Order TPSMB51CA-VR 51 600 7.3 56.7 62.7 82.4 1 1 175 Check Order TPSMB54A-VR 54 600 6.9 60 66.3 87.1 1 1 175 Check Order TPSMB54CA-VR 54 600 6.9 60 66.3 87.1 1 1 175 Check Order TPSMB58A-VR 58 600 6.5 64.4 71.2 93.6 1 1 175 Check Order TPSMB58CA-VR 58 600 6.5 64.4 71.2 93.6 1 1 175 Check Order TPSMB60A-VR 60 600 6.2 66.7 73.7 96.8 1 1 175 Check Order TPSMB60CA-VR 60 600 6.2 66.7 73.7 96.8 1 1 175 Check Order TPSMB64A-VR 64 600 5.9 71.1 78.6 103 1 1 175 Check Order TPSMB64CA-VR 64 600 5.9 71.1 78.6 103 1 1 175 Check Order TPSMB7.0A-VR 7 600 50 7.78 8.6 12 10 200 175 Check Order TPSMB7.5A-VR 7.5 600 46.6 8.33 9.21 12.9 1 100 175 Check Order TPSMB70A-VR 70 600 5.3 77.8 86 113 1 1 175 Check Order TPSMB70CA-VR 70 600 5.3 77.8 86 113 1 1 175 Check Order TPSMB75A-VR 75 600 5 83.3 92.1 121 1 1 175 Check Order TPSMB75CA-VR 75 600 5 83.3 92.1 121 1 1 175 Check Order TPSMB78A-VR 78 600 4.8 86.7 95.8 126 1 1 175 Check Order TPSMB78CA-VR 78 600 4.8 86.7 95.8 126 1 1 175 Check Order TPSMB8.0A-VR 8 600 44.2 8.89 9.83 13.6 1 50 175 Check Order TPSMB8.5A-VR 8.5 600 41.7 9.44 10.4 14.4 1 20 175 Check Order TPSMB8.5CA-VR 8.5 600 41.7 9.44 10.4 14.4 1 20 175 Check Order TPSMB9.0A-VR 9 600 39 10 11.1 15.4 1 10 175 Check Order TPSMB9.0CA-VR 9 600 39 10 11.1 15.4 1 10 175 Check Order
